2017-2022 Ford F250/F350 Bed Bars HMOR

HMOR Bed Bars for 2017-2022 Ford F250/F350 are a round-tube system built for clean fitment, real load support, and everyday truck usability without the bulk of a full bed rack. They support rooftop tents, cargo, and practical truck use while keeping the bed usable and the install straightforward.

Designed and manufactured in the USA.

Key Features

• 1.75-inch OD, 11-gauge HREW steel tube: Round tubular construction provides a sturdy mounting platform while preserving access to the bed.
• Vehicle-specific mounting: Hardware and mounting-foot style are matched to the supported application.
• Gear-ready platform: Supports compatible rooftop tents and cargo, with optional weld-on accessory mounting options available during the build.
• Finish options: Raw steel is standard; powder coat is optional.

Configurations

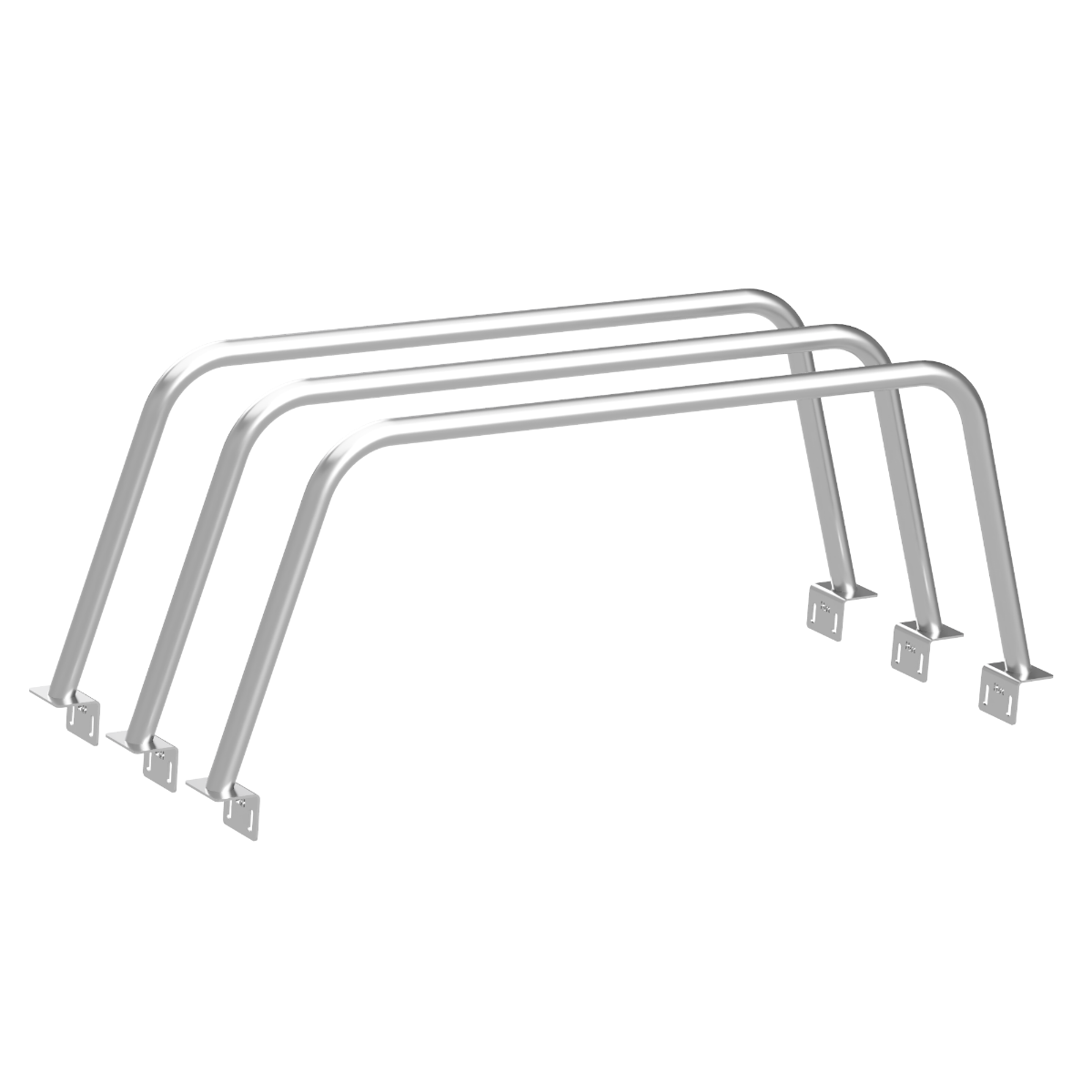

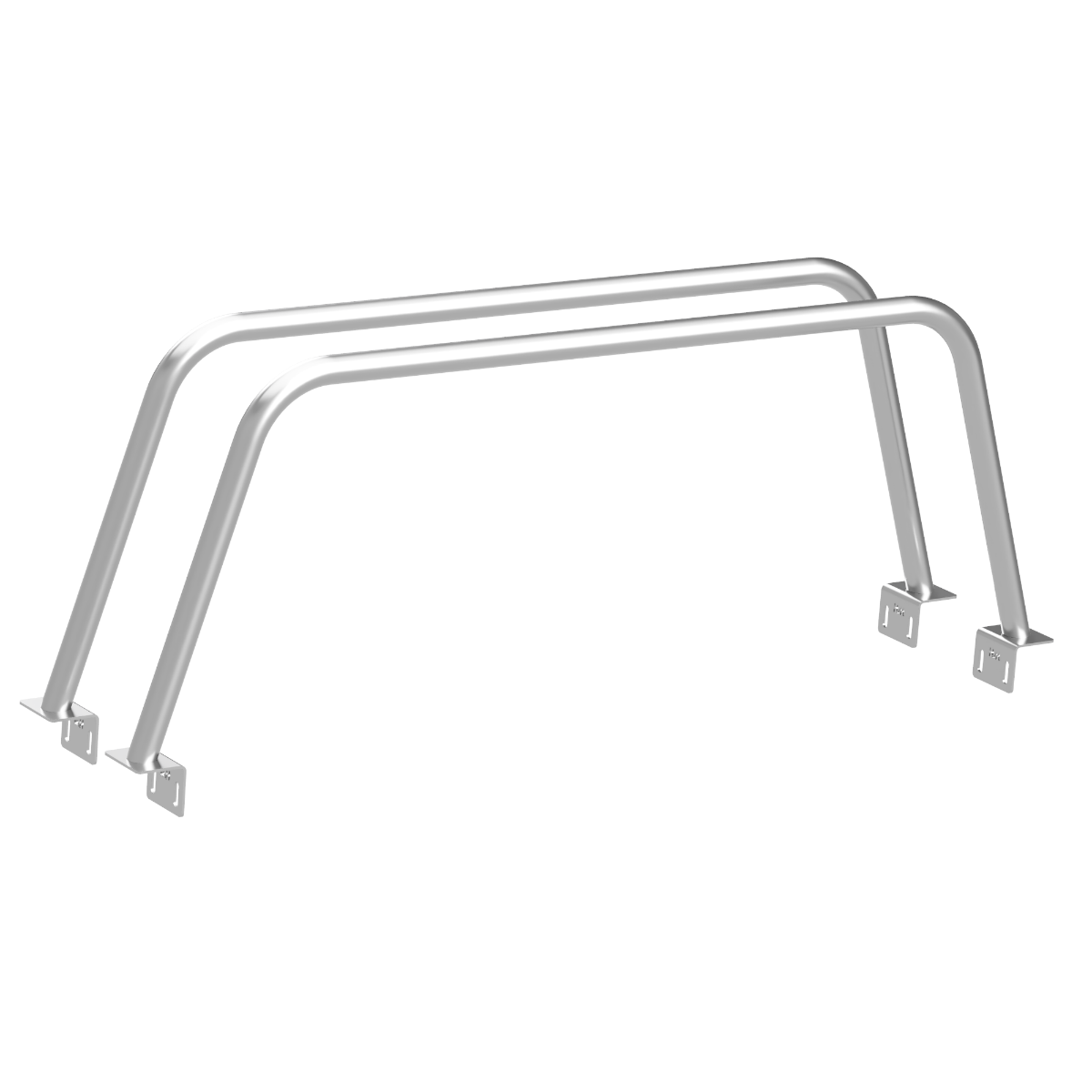

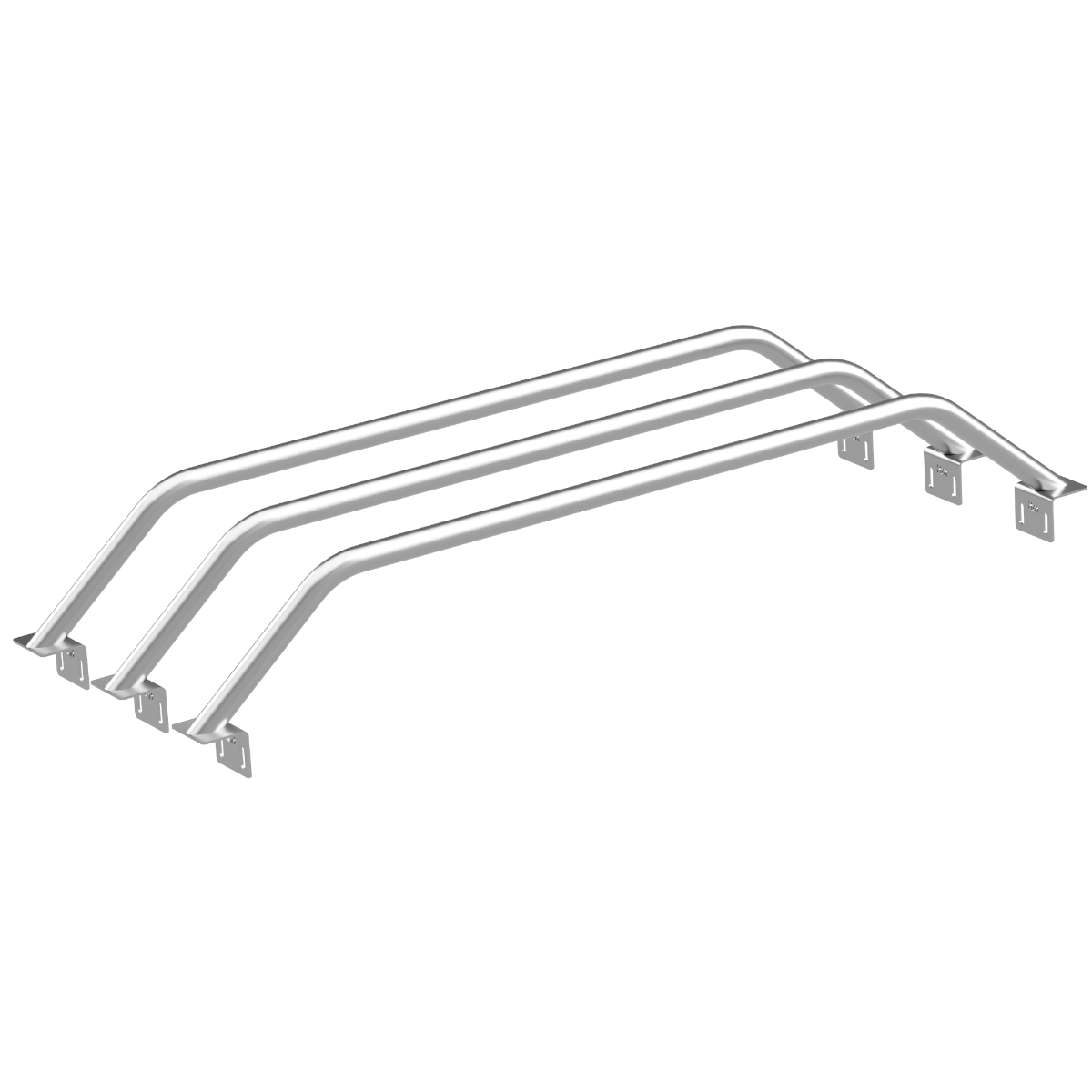

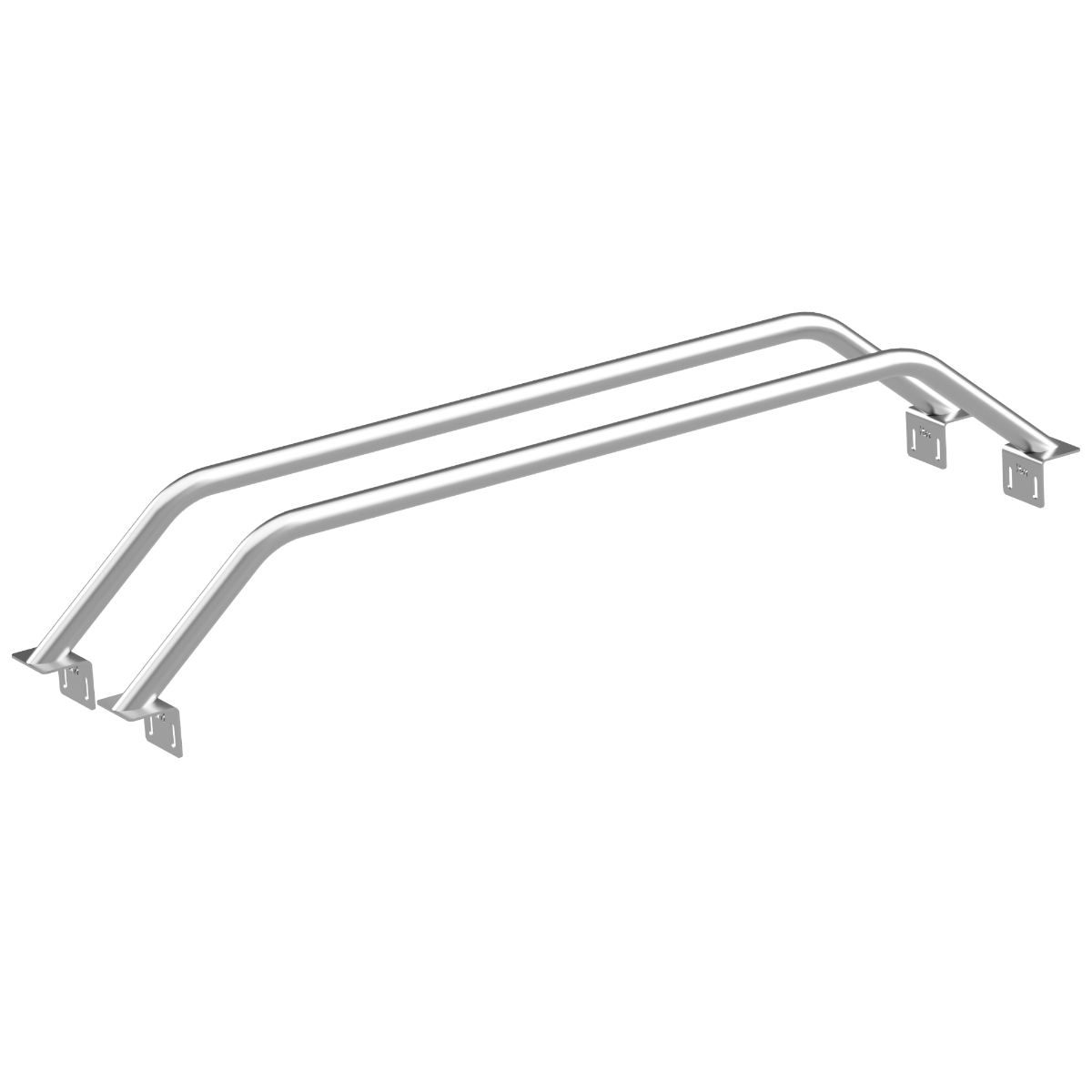

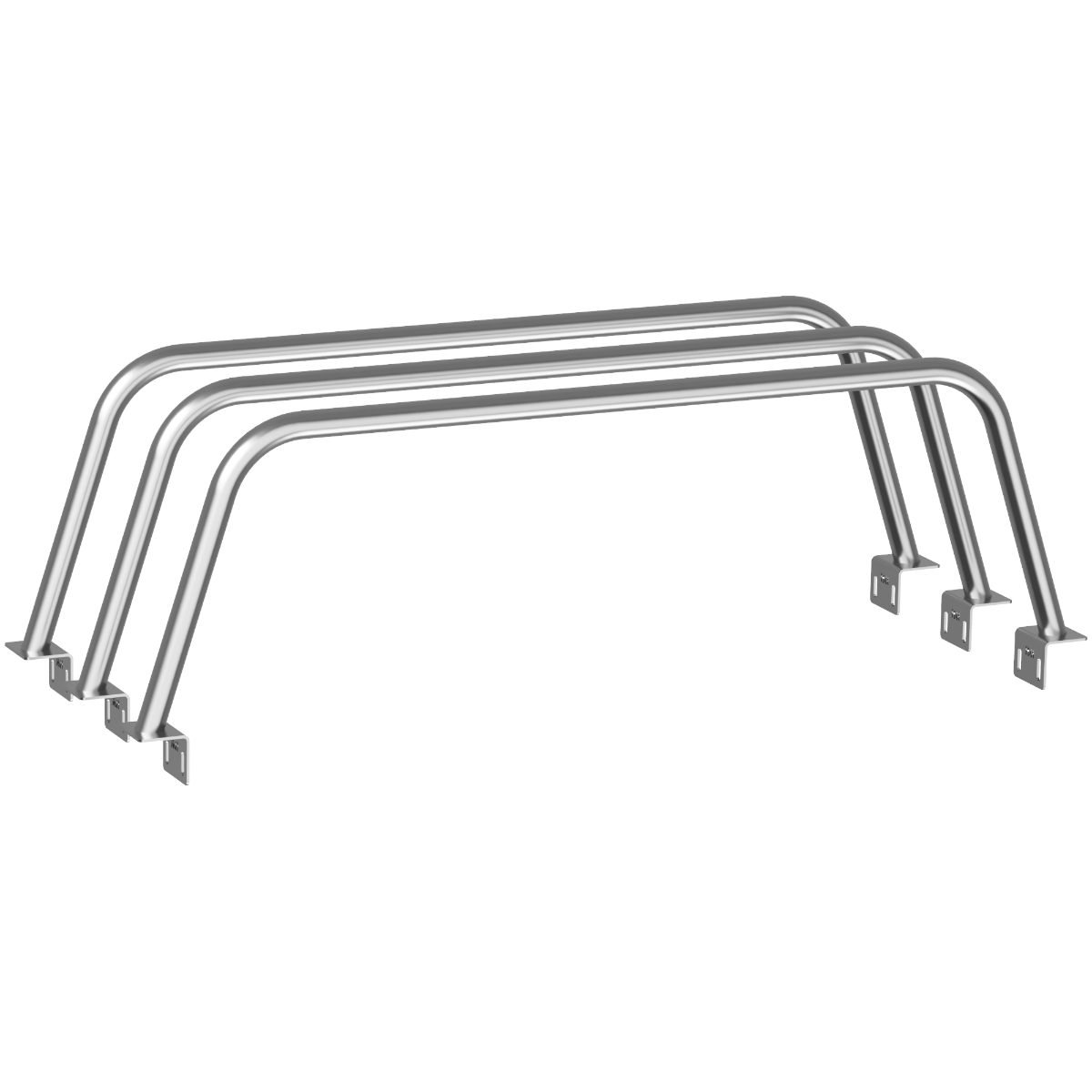

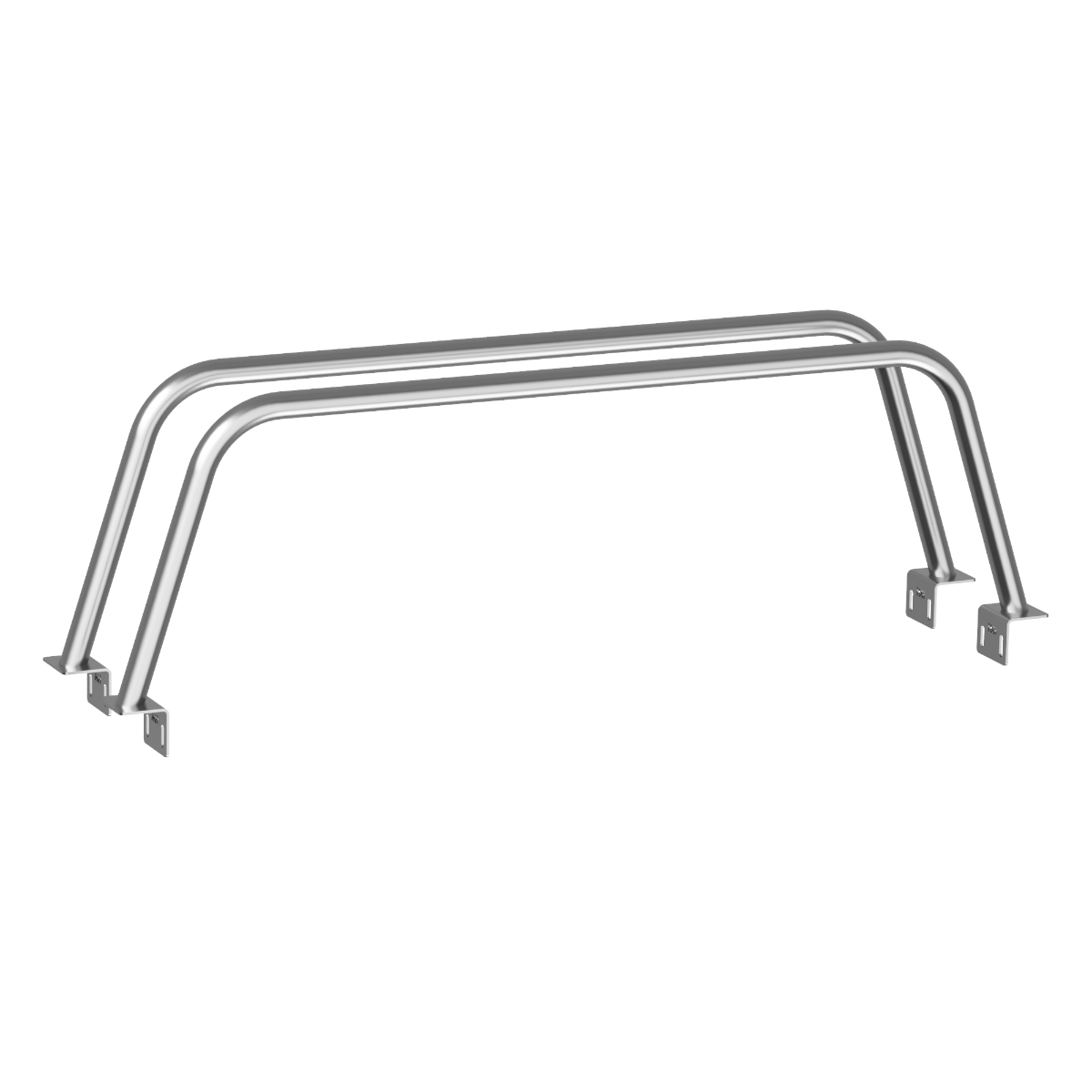

Available heights: 9-inch, 22-inch, 27-inch. Available configurations: set of 2 or set of 3, plus a single-bar option.

Mounting and Fitment

Designed for 2017-2022 Ford F250/F350 applications. Uses the HMOR no-drill pinch-clamp mounting method. All mounting hardware included. No bed cap or plastic trim trimming is required.

Load Ratings and Real Use

Evenly distributed loads only. Set of 2: 500 lbs static + dynamic. Set of 3: 750 lbs static + dynamic. Static = vehicle not moving. Dynamic = vehicle in smooth motion. Rough off-road impacts can exceed smooth-motion dynamic conditions. Do not exceed OEM vehicle manufacturer load capacity. Test basis includes CAD-based assessment plus real-world testing and field validation.

The published set ratings above apply to sets of two or three bars. No single-bar load rating is stated for this product.

What's Included

The ordered Bed Bar configuration and rack-to-vehicle mounting hardware are included. Powder coat and weld-on accessories are optional.

Installation

HMOR Bed Bars for 2017-2022 Ford F250/F350 are designed to assemble and mount using a 9/16 inch wrench or socket. Install requires no drilling using the HMOR no-mod pinch-clamp mounting method. Mounting hardware includes 3/8" Grade 5 bolts, washers, nylon locking nuts, and no-mod plates.

Warranty

HMOR-manufactured products are backed by a limited lifetime warranty for the original purchaser against defects in materials and workmanship. Paint, powder coating, and other coatings are not covered. Damage from misuse, overloading, accidents, neglect, abuse, modification, transfer to another owner, or racing or competition use is excluded. Warranty eligibility is subject to HMOR's full warranty terms.
